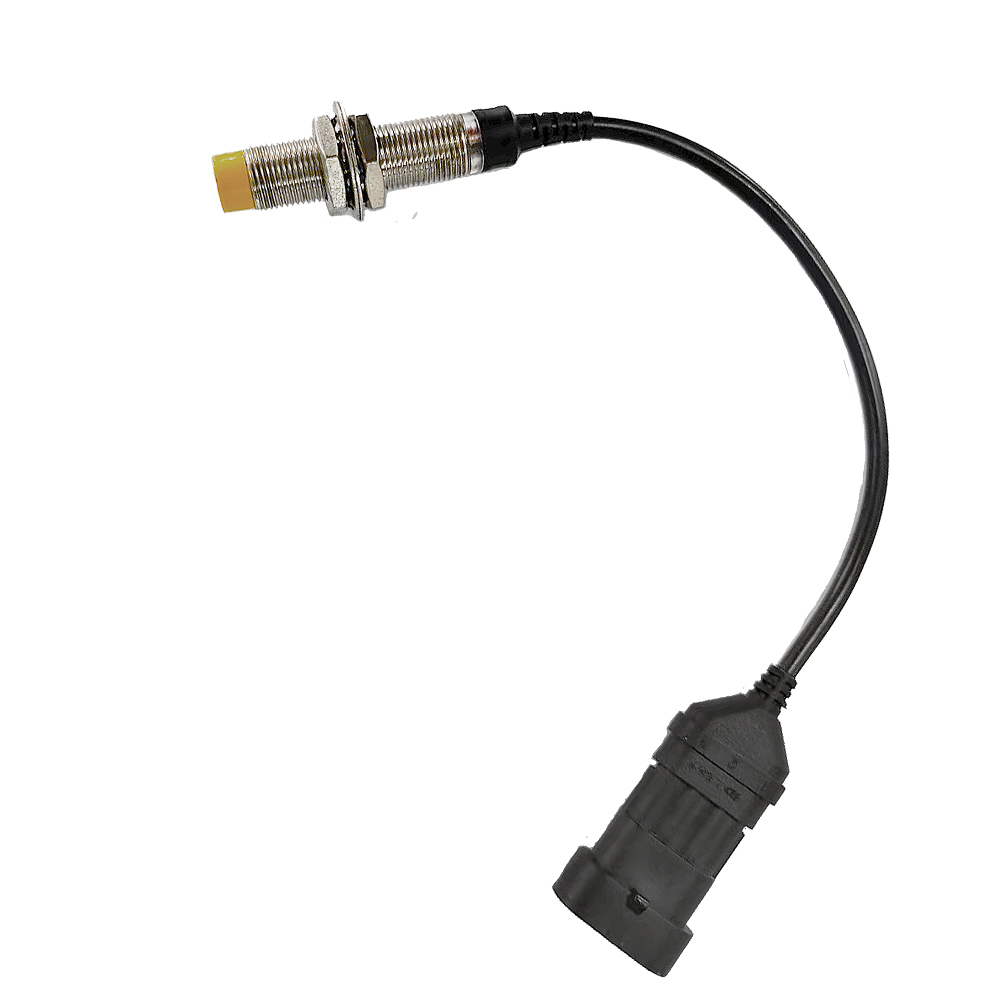

M12 hall effect proximity sensor YH-STSR-M121.0-27
Position sensor/proximity sensor
Description

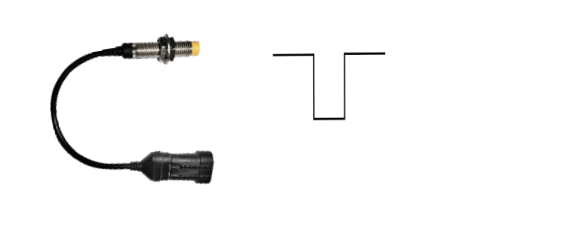

Yuli Intelligent YH-STSR series position/proximity sensors are designed for sensing target’s position. With Hall-effect integrated circuit (IC) and a permanent magnet all sealed inside the threaded package, the IC detects alternation of magnet’s flux density when it approaches or distanced a permanent magnet target. Sensor will output low level voltage(normally open type) when magnet target getting closer or high level voltage when target staying away.
| Item | Specification |
|---|---|
| Supply Voltage | DC 4.5V-36V |
| Signal output | NPN(normally closed type) |
| Output high level | ≦VC-0.3)V |
| Output low level | ≦0.3V |
| Protection Level | IP67 |
| Trigger target material | Magnetic steel S pole |
| Air gap | Directly proportional to the magnetic strength of the magnetic steel surface |
| Operational temperature | -30°C to 135°C |
| Connector type | DJ7035A-1.2-11 |

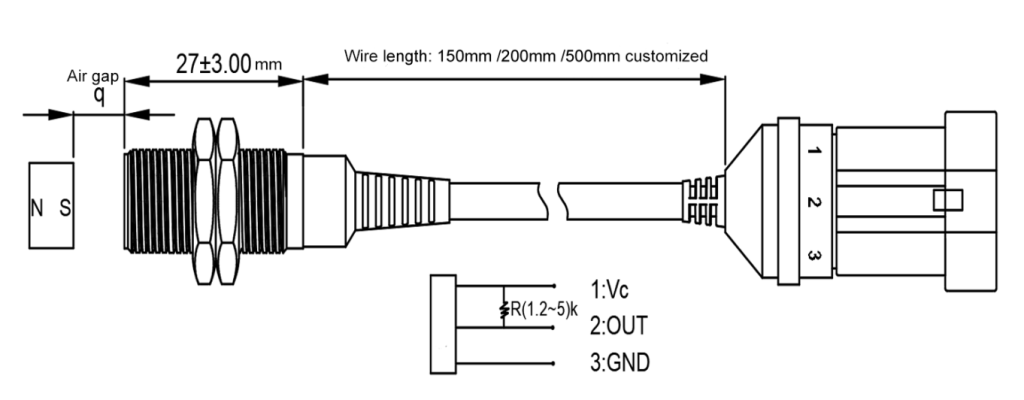

MOUNTING DIMENSIONS
