Guass Meter YH-CD08 series

Guass meter with auto calibration and temperature compensation

Guass meter/Tesla meter YH-CD08 series is a new type of hand-held magnetometer (Tesla meter) designed according to”IEC-610601-1”. High precision sensor is used for data acquisition ,accurate magnetic field strength measurements ,magnetic field polarity measurements.

LED for magnetic field polarity display can avoid the mis-judgement by traditional Tesla meter effectively.

This product adopts the integrated hall probe design,does not need to replace the hall probe. It is durable,operating more user-friendly and concise. It is an ideal tool for magnetic field detection ,manufacturing and experimental development.

Features

Portable single hand operational design

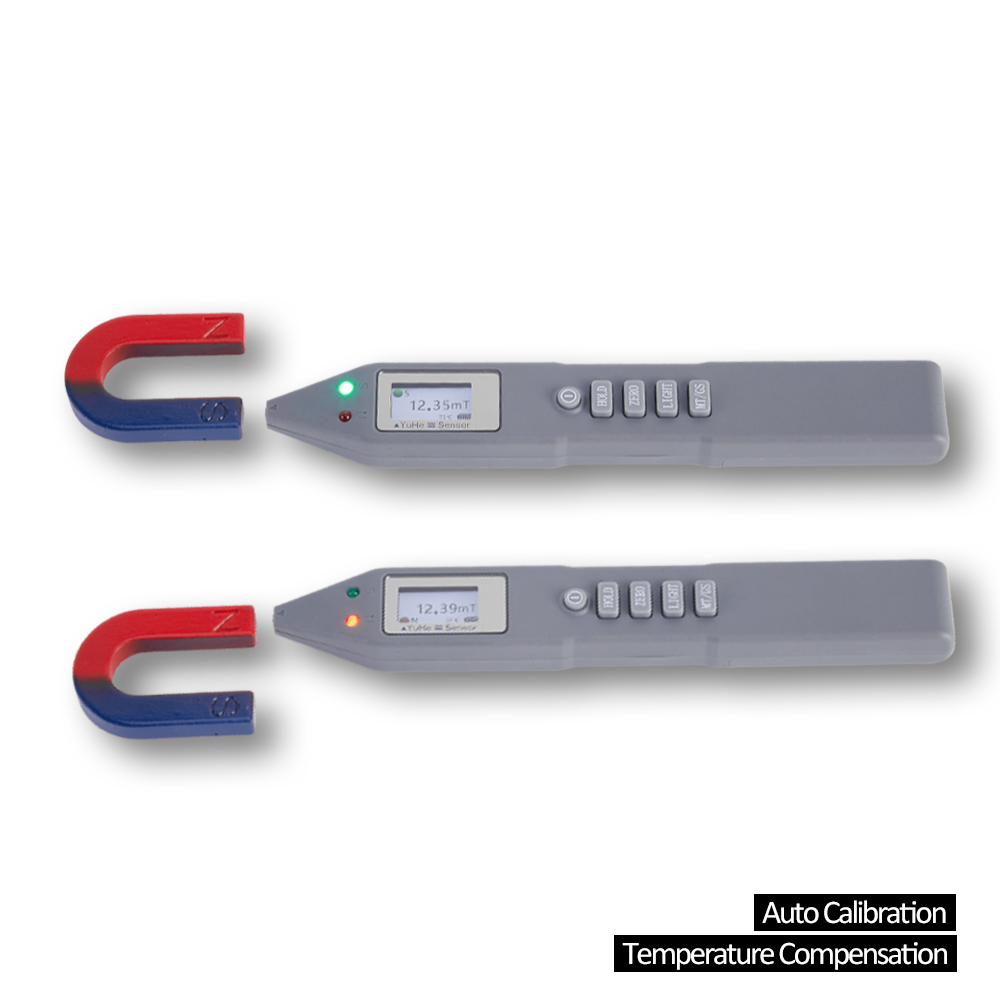

LED N/S pole(red for N/ green for S)

LCD display magnetic field strength

LCD backlight display

HOLD measurement

ZERO adjustment

Non-consumable the hall probe

High-precision and low power consumption

Automatic calibration

Ambient temperature compensation

Potential Application

Magnetic field strength measurement

Magnetic polarity judgement

Electromagnetic radiation measurement

Product remanence measurement

Electromagnetic parts assembly

R&D experimental measurement

Application of measurement in teaching

Quality inspection tool

Technical data

Model	YH-CD08-A	YH-CD08-B	YH-CD08-C	YH-CD08-T001
Display Unit	mT (1mT=10GS)
Basic Accuracy	0.01mT	0.02mT	0.05mT	0.001mT
	(±1%)	(±2%)	(±5%)	(±1%)
Power supply	1.5V AAA battery 2pcs
Measuring Range	0-2500mT
N/S pole	LED indicator light ;S(Green) N(Red)
Dimensions	182*26*15mm
(L*W*H)	200*65*28mm (with package)
Gross weight	132±5g (no battery)
Warranty	2 years
